SAP ArchiveLink®: What It Is, How It Works, and Where It’s Used

What Is SAP ArchiveLink^®?

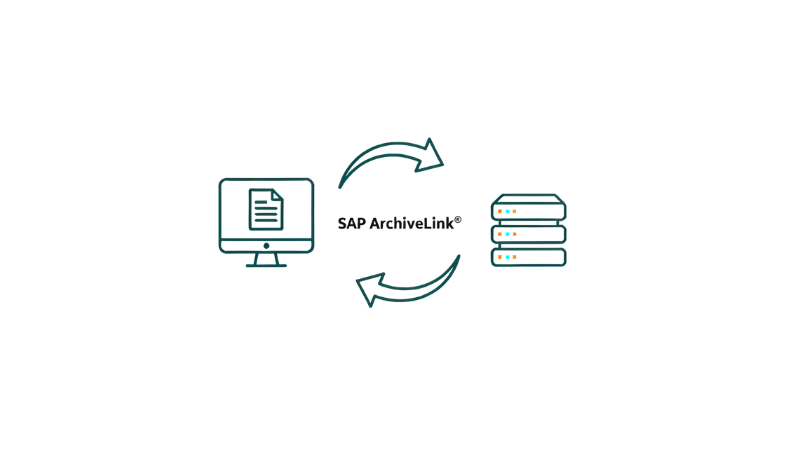

ArchiveLink is a service integrated into the SAP Web Application Server that links SAP application documents, such as invoices or delivery notes, to documents in a connected repository. As part of the SAP architecture, it connects archived documents with their corresponding application documents. This makes it possible to view archived documents directly from the related SAP business transaction.

ArchiveLink has been established since SAP R/3 and is also used in today’s S/4HANA environments. SAP manages the business transaction itself and the link information; the connected repository stores the document content.

A simple example is an invoice. The invoice document is processed in SAP, while the corresponding PDF is stored in the connected repository. When an authorized user opens the invoice from the SAP document, SAP retrieves and displays the file using the ArchiveLink connection.

ArchiveLink is therefore neither the archive itself nor a complete document management or enterprise content management system. Rather, it provides the technical connection between SAP and the connected repository.

For auditability and compliance, it’s important to note that an ArchiveLink connection documents the relationship between an SAP object and an archive object. It does not replace a retention policy or the need to assess the target system, access permissions, and supporting documentation.

How does ArchiveLink work in detail?

In SAP, ArchiveLink maps the technical workflow between the SAP application, the document, and the content repository. A typical process looks like this:

1. A document needs to be archived. This could be a vendor invoice, a delivery note, an email attachment, a print list, or an outgoing SAP document.
2. The SAP application initiates storage through ArchiveLink. Among other details, it passes the document type, the SAP business object, and the association with the business transaction.
3. The document is stored in the configured content repository. The content repository is the logical configuration for connecting to the relevant storage system and its storage area.
4. SAP creates an ArchiveLink link between the SAP business object and the archived document. It contains the information needed to retrieve the document later.
5. When the document is accessed later, it is displayed from within the SAP business transaction. SAP retrieves the archived object using the stored document ID and the responsible repository.

‍

What role do transactions play in SAP ArchiveLink^®?

An SAP transaction is a specific function in SAP. It can usually be started using a short transaction code, known as a T-code.

ArchiveLink connects SAP business documents, such as invoices, with documents stored in a connected repository. For this to work, SAP needs to know where documents are stored, what document types exist, and how those documents are linked to the corresponding SAP documents.

The following table shows common transactions and their corresponding functions:

‍

‍

How does SAP ArchiveLink^® store links?

When SAP stores a document through ArchiveLink, the system saves a reference in a link table that connects a document in the storage system with the corresponding SAP object.

A link entry typically contains details such as the SAP object type and object ID, as well as the document type, repository ID, and document ID. This allows SAP to find and display the archived document associated with a business document.

For very large document volumes, the structure of the link data can also affect performance. In mature SAP landscapes, it’s therefore important to check which table is being used, how quickly it is growing, and which access patterns actually occur in day-to-day operations.

‍

What is a Content Repository?

A content repository is a logically defined storage area in SAP. SAP uses the repository ID to reference the configuration and the associated storage system. The repository is therefore the logical access point for storage, not necessarily a separate physical storage location.

Depending on the configuration, document content can be stored in an SAP database, an HTTP content server, or another supported content server or archiving system. The available storage options depend, among other things, on the SAP version, the repository configuration, and the target system.

‍

What types of documents can be archived through SAP ArchiveLink^®?

ArchiveLink can be used for a variety of document scenarios, including:

• Incoming documents, such as vendor invoices, purchase orders, or delivery notes
• Outgoing documents, such as invoices, order confirmations, or dunning notices
• Documents from SAP business transactions that are linked to a business object
• Scanned documents that are linked to an SAP document, for example, through a barcode scenario

SAP data archiving and document archiving are distinct processes. ArchiveLink links archived documents to their corresponding SAP documents. Application data is archived using separate procedures, such as the SAP Archive Development Kit or SAP Information Lifecycle Management. The two areas can work together as part of an overall architecture, but they serve different purposes.

‍

Benefits of ArchiveLink and where the interface has limitations

The strengths of ArchiveLink

ArchiveLink is widely used in SAP landscapes for good reason:

Direct access: Users can open archived documents directly from the associated SAP business transaction.

Clear association: The link unambiguously connects the SAP object to its corresponding archive object.

Reduced load on the SAP database: Documents can be moved out of the operational SAP system.

Proven SAP standard: ArchiveLink is available in many on-premises and private cloud scenarios.

Support for compliance processes: When used with a suitable archiving system and clear organizational policies, ArchiveLink can support traceable document storage.

Keep in mind that ArchiveLink alone does not automatically make storage audit-proof or legally compliant. The target system, authorization structure, retention rules, deletion processes, and documentation of evidence must also work together.

Editorial note: the SAP interfaces available depend on the SAP edition, release, and system configuration. The following statements describe typical scenarios; they do not replace an assessment of your specific system landscape.

‍

The limitations of the interface in modern SAP landscapes

ArchiveLink is an SAP-specific interface. This can present limitations when companies want to connect a wide range of applications, flexible metadata models, or cloud-native integration patterns:

• ArchiveLink is designed primarily to link documents to business objects within SAP. Depending on the scenario, additional interfaces or standards may therefore be needed for general, cross-application content integration.
• Integrations across systems outside the SAP context are not ArchiveLink’s original focus, nor are hybrid or public cloud architectures.
• ArchiveLink remains a viable component of SAP archiving in S/4HANA on-premises and private cloud scenarios. In cloud-oriented scenarios, CMIS may be relevant.

‍

SAP ArchiveLink^® vs. CMIS: when is it worth making the switch?

CMIS stands for Content Management Interoperability Services. This vendor-neutral standard, developed by OASIS, defines interfaces for accessing content, metadata, and features in content management systems.

The difference becomes relevant when SAP is no longer the only system of record or when a cloud strategy is being implemented.

The decision therefore depends on the scenario:

• Existing on-premises landscape with no specific cloud plans: ArchiveLink may still be the right, cost-effective interface.
• Hybrid architecture or public cloud strategy: CMIS should be considered early as part of the interface strategy.
• Ongoing S/4HANA transformation: Running both standards in parallel may make sense, helping keep existing processes stable while enabling new cloud-ready scenarios.
• Planned archive migration: Always review your interfaces, document types, links, retention periods, and evidence together, never in isolation.

‍

Learn more about the strategic role of ArchiveLink and CMIS in our webinar, “CMIS vs. ArchiveLink—Which Interface Is Truly Future-Proof in 2026?”

‍

tia^® by kgs: keep your existing SAP ArchiveLink^® environment running and migrate with confidence

Our SAP ArchiveLink® certifications

Since 2005, kgs has served as SAP’s global outsourcing partner for the certification of ArchiveLink and ILM interfaces. Among others, we support the S/4-BC-AL 7.40 and S/4-BC-ILM 1.0 integration scenarios.

In addition to ArchiveLink, the tia^® product portfolio also supports CMIS and ILM. Our CMIS interface was also the first CMIS interface in the world to be certified by SAP.

tia^® Content Server: keep your existing ArchiveLink environment running

The tia^® Content Server supports audit-oriented archiving of documents, attachments, and print lists via SAP standard interfaces. This lets you continue operating an existing ArchiveLink environment while preparing it for hybrid or cloud-based target architectures. In established SAP systems, ArchiveLink can remain in use while new connections are planned via CMIS.

tia^® Migration: Switch archives with a complete audit trail

We developed tia^® Migration as a tool for controlled archive migrations in SAP environments. It focuses on monitoring the transfer, checking the migrated objects, and maintaining a traceable audit trail for the completed archive migration. Read more about what this can look like in our case study:

Box: Our PUMA case study describes the migration of 33 million documents as part of an S/4HANA implementation.

‍

Conclusion: use ArchiveLink effectively and prepare for the future

ArchiveLink is the proven bridge between SAP and a connected archiving system. The interface creates a direct link between an SAP document and its archived counterpart, supports established archiving scenarios, and remains relevant in supported on-premises and private cloud landscapes. Its limitations become most apparent with public cloud, multi-system, and general content integration requirements.

So don’t just check whether ArchiveLink works from a technical standpoint. Also assess how the interface fits into your S/4HANA roadmap and cloud strategy. ArchiveLink may remain the right choice for existing landscapes. For new cloud-oriented scenarios, CMIS should be considered early, if applicable.

If you’d like to maintain your ArchiveLink environment, plan an archive migration, or assess the right interface strategy for S/4HANA, feel free to contact us at any time.

‍
